brand :earthmaster

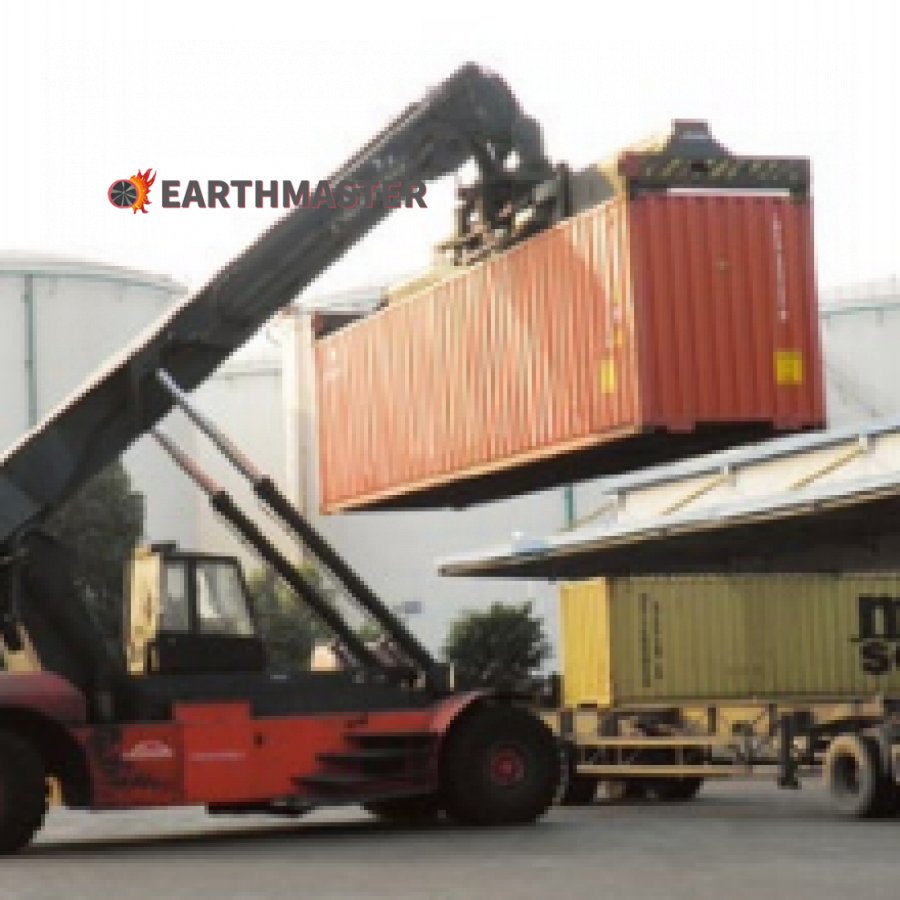

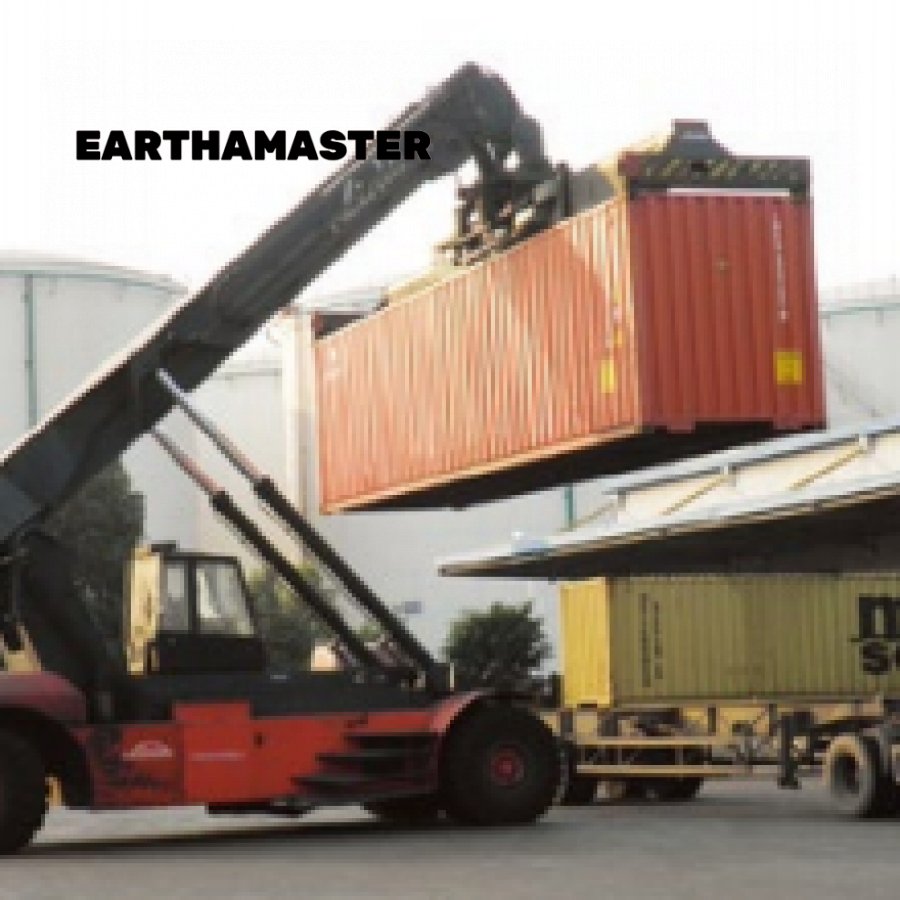

Suitable for port equipment such as large tonnage forklifts, stackers, overhead cranes, and gantry cranes, with a sturdy body,

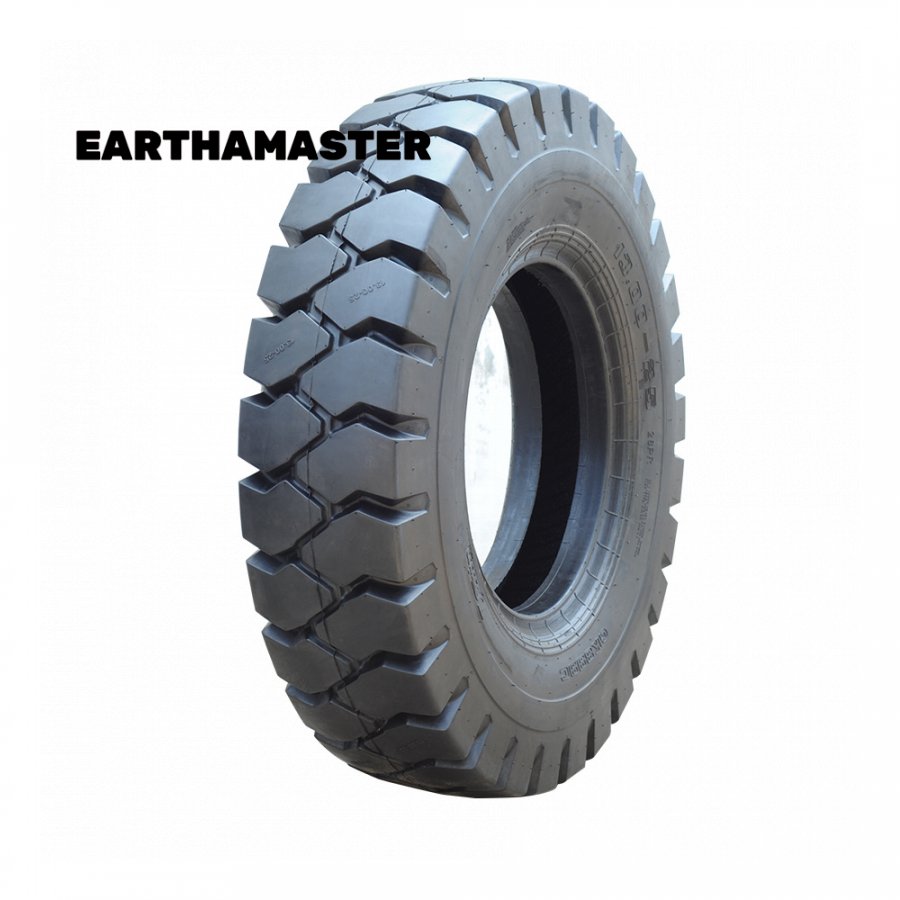

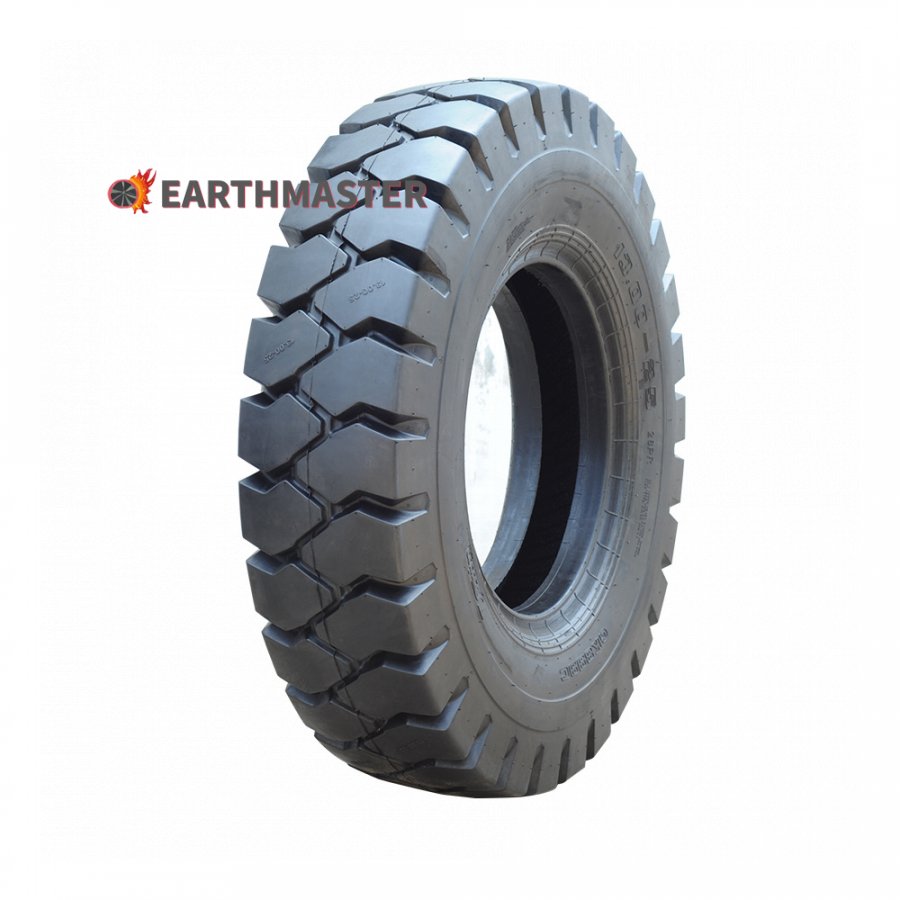

The tire beads have undergone special treatment, with enhanced support capacity and low heat generation. The tire surface adopts a wide running surface and block shaped design
Deep patterns provide excellent grip, braking performance, and stronger stability and operational safety under heavy loads.
The tread adopts a high wear-resistant formula, with good wear performance and longer tire life. Good airtightness, reducing the number of air refills,
The tire body is made of materials with low heat generation and good adhesion performance, greatly reducing the probability of tire delamination and allowing for multiple applications
Refurbish to reduce tire usage costs.
SIZE | PR | PATTERN NO. | TYPE | T.D.(mm) | STD.RIM | (INFLATION PRESSURE) (KPa) | LOAD CAPACITY AT VARIOUS SPEED (kg) | S.W. (Mm) | O.D. (Mm) | |||||||
0km/h | Creep | 5km/h | 10km/h | 15km/h | 20km/h | 25km/h | 30km/h | |||||||||
14.00-24 | 32 | X899C | TT/TL | 28 | 10.00 | 1100 | 19605 | 17430 | 15845 | 14700 | 14160 | 13820 | 13600 | 13460 | 375 | 1370 |
